Product Description
This is the Traxxas Radio Controlled, Electric Powered,
Ready to Race DCB M41 40" Twin Hull Catamaran
with Traxxas Stability Management (TSM).
FEATURES: Traxxas Stability Management (TSM): Superior tuning algorithms run on
high-speed electronic components for greater control. TSM can be
fine tuned or turned off by adjusting the multi-function knob on
the TQi transmitter or the slider in the Traxxas Link app
Hull: Vacu-formed ABS catamaran shoebox style with factory applied
graphics, detalied cockpit, and built-in foam flotation, hatch
removes with one clip that is attached to a rubber lanyard to
prevent loss
Drive System: Quick release flex cable, with rudder, rudder support
and drive strut extruded and machined from 6000 series aluminum
alloy for maximum strength and precise control, adjustable
outdrive height and angle
Trim Tabs: Stainless steel
Brushless Motor: Water cooled Traxxas Velineon 540XL, ultra high
temperature sintered Neodymium magnets, precision balanced rotor
and high-speed ball bearings
Electronic Speed Control: VXL-6S marine with Traxxas High-Current
battery connectors, designed for true 6S power
Radio: 2.4GHz TQi, can be equipped with an optional Traxxas Link
Wireless Module (#6511 sold separately, TRAC6511) that turns
driver's smartphone into a powerful tuning tool
Compatible with iPhone (4S or later)
iPad (3rd gen and later)
iPod touch (5th gen and later)
iPad mini
#6533 5-channel Traxxas Stability Management receiver
Steering Servo: Traxxas #2056 high-torque waterproof
Propeller: 2-blade composite, 42x59mm
Battery Trays: Adjustable, batteries (not included) are secured with
hook and loop straps
INCLUDES:DCB M41 40" Catamaran with Brushless Motor, ESC, 2.4GHz Radio and
Instructions
REQUIRES: Batteries: Two 11.1V LiPo, at least 5000mAh

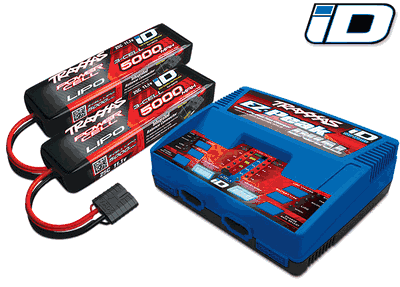

Battery charger compatible with selected batteries (Traxxas offers a
Completer Pack (TRAP2990) that includes two 5000mAh batteries and
a dual battery charger)
AA Batteries: Four for transmitter

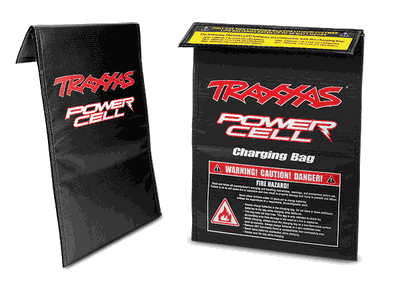

LiPo charging bag, shore and maintenance equipment
SPECS: Catamaran;
Hull Length: 39.5" (1003mm)
Overall Length: 40.6" (1031mm)
Overall Height: 9.95" (253mm)
Beam: 10.5" (267mm)
Weight: 5.42lb (2.4kg) without batteries
Dead Rise Angle: 14.5°
ESC
Input Voltage: 4-6S LiPo, 14.8-22.2V DC
BEC Voltage: 6.0V DC
BEC Current: 3A
Thermal Protection: Thermal shutdown
Low Voltage Detection: Yes (user enabled)
)
